elevator Control systems
Elevator control systems are the technologies and mechanisms that manage the operation, movement, and safety of elevators. They play a critical role in ensuring elevators function efficiently, reliably, and safely by coordinating various components, such as motors, doors, and sensors.
At Alamex, we deliver advanced elevator control systems designed for efficiency, energy savings, and superior passenger experiences. With a wide range of customizable options, our systems set the standard for reliability and adaptability, making us the trusted choice for projects of all scales.

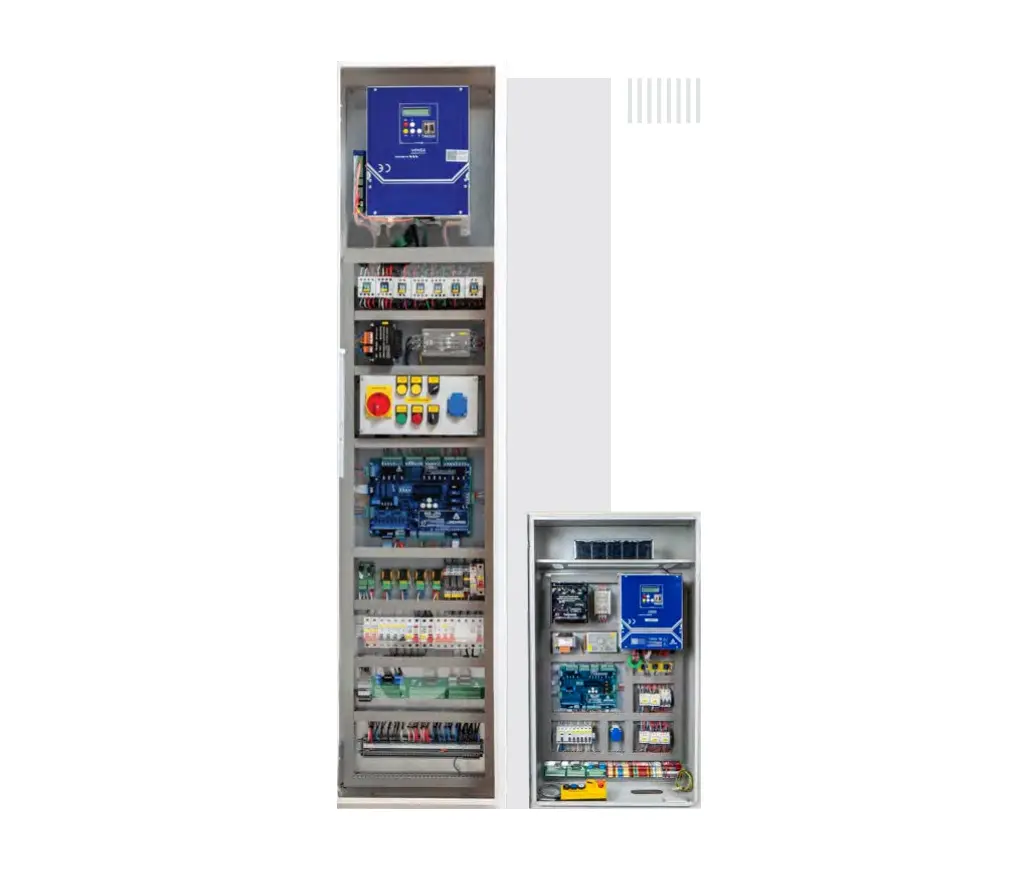

Built with exceptional quality, our control systems for lifts feature a modular architecture that seamlessly integrates all elevator functionalities. This innovative approach removes the need for additional hardware, ensuring simplicity and efficiency.
mini intelligent
- 3kW to15kW
- Direct landing
- Easy Installation
- Supports up to 12 floors
- Contactless (STO) Design
- Simplex and duplex operation
- User friendly hand terminal option
- Pre-torque and anti-rollback function
- Works with geared and gearless machines
- Supports Open-Loop and Closed-Loop applications
easy drive alam v3
- 16 standard stops
- Compatible ENBl-20
- Assigned and programmable outputs Door opening leveling
- 1.6 mis speed support and Ability to work up to 4 groups of lifts
- At revision mode selection of the movement to limit switches and exact floor level
- Warning signal on LCD screen when the door is open or when no stop signal more than the adjusted time
intelligent
- 3 KW to 30 KW
- Operates up to 64 stops
- Remote access via internet
- USB and Ethernet interfaces
- Optional TFT Hand Terminal
- Distance based operation with encoder
- Car serial or full-serial shaft communication
- Built-in RFI filter, choke coil VIP access control
- SSI, En Oat, SinCos, BISS encoder support for synchronous motors
- In conformity with ENSl-20/50, EN81-l, EN81-28, 70, 72, 73 standards
- Operation support for simplex, duplex, triplex and for group of lifts up to 8
- AE-MAESTRO operates quietly through its contactless system (Safe Torque Off- STD)
arcode
- Number of stops : 64 Stops
- Elevator Speed (Maximum) : 4 m/s
- Group Work Feature : Up to 8 elevators
- Drive Type : With or Without Engine Room(MRL)
- Serial Communication : With Ready Installation CAN bus Serial Communication (standard)
- Automatic Bring to Floor : 1-Faz 220VAC UPS Accumulator Group Connection
- Motor Control : Synchronic (gearless) Machine, Asynchronic (geared) Machine
- Encoder: Incremental Encoder(5V TTL or 10-30V HTL), Absolute Encoder(Encat, SSI, SinCos or BISS)
adrive
- Group Control : 4
- Door Bridging: Available
- Number of stops : 24 Stops
- Error Record : Up to 60 Faults
- Serial Communication: With cabin
- Elevator Speed (Maximum): 1.6 mis
- Compliance to Standards: EN 81/1-2 + A3p
- Drive Type: Double Speed, Hydraulic, VVVF
- Cabin Position Information: Magnetic Switch
- Display Outputs: 7 Segments, Gray/Binary Code Output
- Control Type: Simple Control, One Way Pickup, Two Way Pickup
- Language Options: Turkish, English, Russian, Dutch, Romanian, German, Italian
italiano v1
- Cabin serial communication output
- Includes an automatic door controller
- One speed and two speed and VVVF controls
- The function of manual movement at low speed by using program buttons
- Warning signal on LCD screen when the door is open for a long time or when the stop return circuit is not detected for a long time
- Supports up to 10 floors, options between an up or down collective or 6 full collective control
- At Inspection the movement to limit switches or exact floor level can be chosen Short circuit protected display outputs can be adjusted to every floor
- Electronic control of phases, phase order errors of these controls shown via LCD on board, turning off function by choosing the parameters, adjustable phase level sensitivity
